hinged belt chip conveyor
Hinged chip conveyor belt
It runs smoothly during the conveying process, is easy to install and replace, and has a long service life. It is used for medium and heavy load conveying.
A proven conveyor solution for a variety of materials, chip types, and chip loads. Hinge belts, the most common conveyor type, can be modified to handle more troublesome waste like tough scrap and heavy parts.


1.Hinged belt chain material: black A3 carbon steel, Galvanized steel, 1Cr13 steel, stainless steel 201/304/316L.
2.Parameter
Width |
Pitch |
Through Shaft Diameter |
Roller Diameter |
Steel belt thickness |
As customer required |
31.75mm |
Φ8 |
Φ19.05 |
1.0/1.5/2.0mm |
As customer required |
38.1mm |
Φ8 |
Φ22.23 |
1.0/1.5/2.0mm |
As customer required |
50.8mm |
Φ10 |
Φ28.58 |
1.0/1.5/2.0/3.0mm |
As customer required |
63.5mm |
Φ10 |
Φ40 |
1.5/2.0/3.0mm |
As customer required |
76.2mm |
Φ14 |
Φ44.45 |
1.5/2.0/2.5mm |
As customer required |
101.6mm |
Φ14 |
Φ57.15 |
2.5/3.0/4.0mm |
As customer required |
150mm |
Φ20 |
|
2.5/3.0/4.0mm |
Hinged belt type
Flat conveyor belt chain

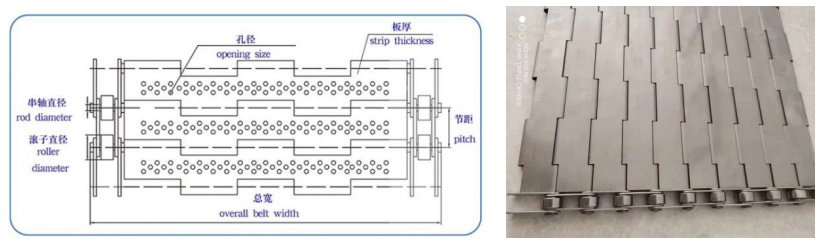

Perforated conveyor chain
Bump belt conveyor chain
Finished product photos
black A3 carbon steel
Galvanized steel
1Cr13 steel
stainless steel 304
Steel wire mesh belt
Steel wire mesh belt characteristics: flexibility, smooth running, easy to install, maintain and repair, it can resistance from -55℃ to 1150℃.
material: A3 carbon steel, galvanized steel, stainless steel 304/316.
Usually used in baking oven, quenching tank, washing machine fryer freezer etc
Steel wire mesh belt
Steel wire mesh belt characteristics: flexibility, smooth running, easy to install, maintain and repair, it can resistance from -55℃ to 1150℃.
material: A3 carbon steel, galvanized steel, stainless steel 304/316.
Usually used in baking oven, quenching tank, washing machine fryer freezer etc

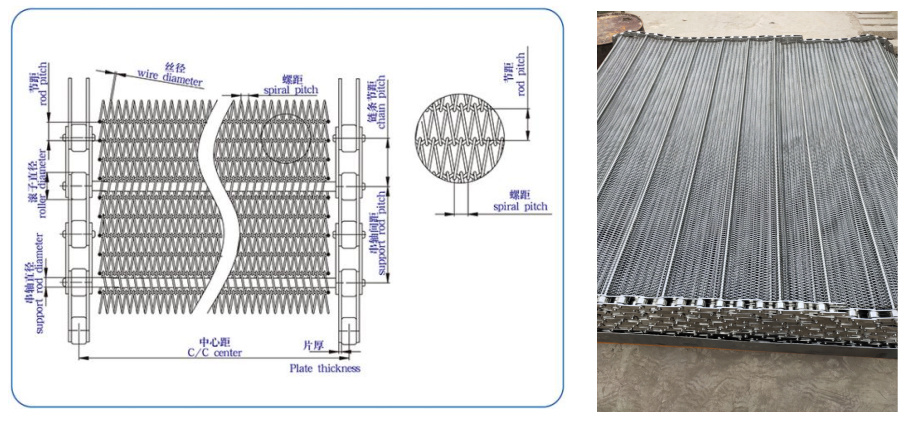

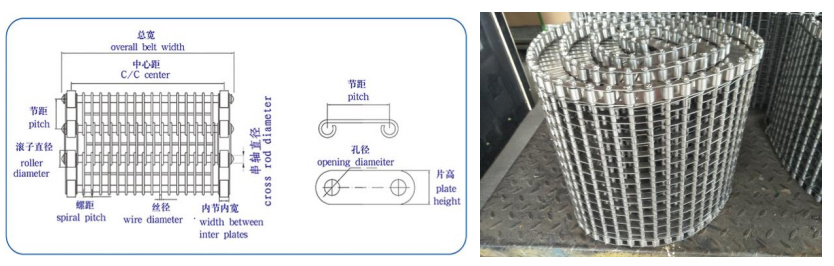

1.Roller chain conveyor belt

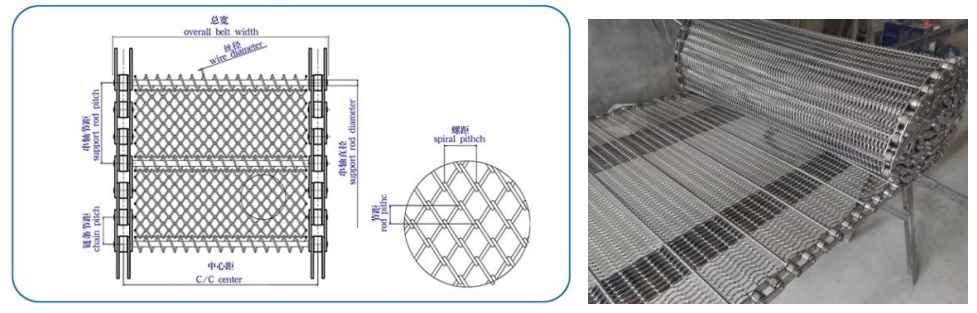

2.Diamond mesh belt

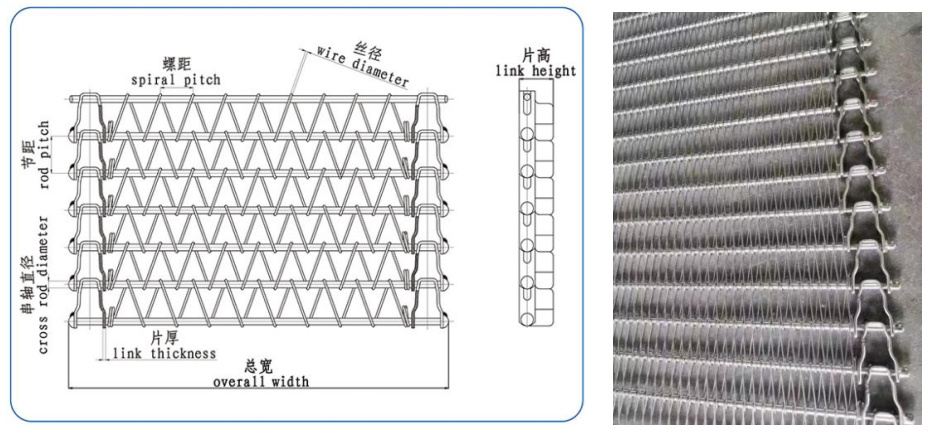

3.Spiral mesh belt
4.chain plate mesh belt
5.Eye link mesh belt
6.Sprocket
