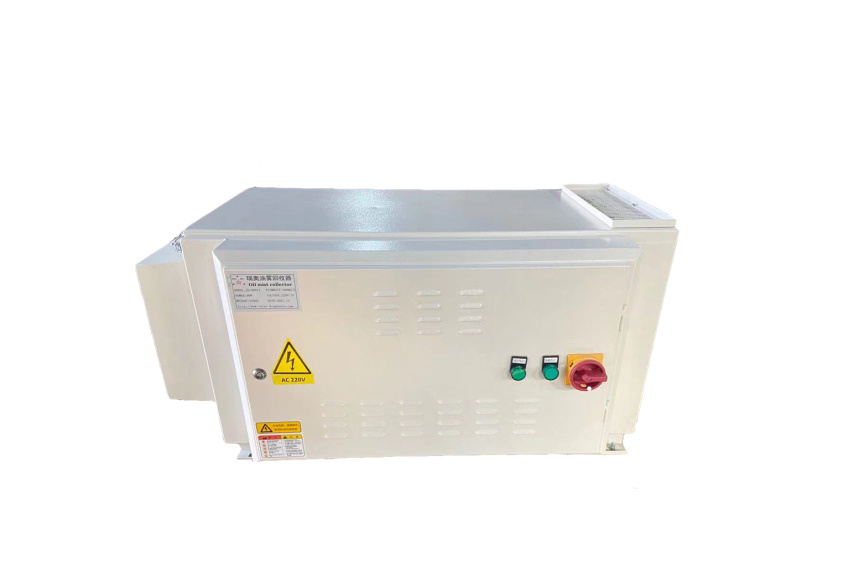

JD electrostatic oil mist collector
Oil mist collector is an excellent choice to remove coolant mist, water mist and oil mist etc. Oil mist are from various processes such as brazing, casting, flame cutting, drilling, grinding, milling and attack.
This product adopts mechanical purification and electrostatic purification dual role.
|
Product benefits |
1.Modular structure
2. Easy installation, maintenance and cleaning.
3.Intellegent electrostatic power control system.
4.Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
5.Safety and Stability:
6.Door-open power-off protection,
7.Over-current, voltage, temperature protection,
8.Fan cooling.
|
Model |
JD-500 |
JD-500Ⅱ |
JD-800 |
JD-800Ⅱ |
JD-1200 |
JD-1200Ⅱ |
JD-1500 |
JD-1500Ⅱ |
||||
|
Air Volume M3/H |
400-500 |
600-800 |
800-1000 |
1200-1600 |
||||||||
|
Installation dimensions |
562*355 |
850* 355 |
590*435 |
880*435 |
602* |
890*435 |
684* |
980* |
||||
|
Suction Caliber |
100 |
125 |
150 |
200 |
||||||||
|
voltage |
AC-220/380v-50HZ |
AC-220/380v-50HZ |
AC-220/380v-50HZ |
AC-220/380v-50HZ |
||||||||
|
Power |
90W |
145W |
260W |
450W |
||||||||
|
Number of power supplies |
1 |
2 |
1 |
2 |
1 |
2 |
1 |
2 |
||||
|
Electric field size |
280*390*395 |
280*475*395 |
280*475*450 |
280*555*450 |
||||||||
|
Number of electric fields |
1 |
2 |
1 |
2 |
1 |
2 |
1 |
2 |
||||
|
Overall dimensions |
804*517*550 |
1090*517*550 |
830*597*550 |
1120*597*550 |
864*597*605 |
1150*597*605 |
946*677*635 |
1230*677*635 |
||||
|
weight |
41.7kg |
56.7kg |
53.6kg |
65.6kg |
58.8kg |
83.6kg |
76kg |
99.5kg |
||||
|
Working principle |
1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.,Gravity inertial cleaning technique, The special structure of the room gradually divides large diameter pollutant into physical separation, And balanced rectifier.
2. The air then passes into the high voltage ioniser section where the particulates are charged to a positive potential.
And then the air passes into low voltage collector cell section where the particulates are charged to a negative potential.
So the particulates are attracted to the collector plates effectively.
3. The particulates remain on the plates or drain down in to the sump.
4. The cleaned air exits through the cabinet.
